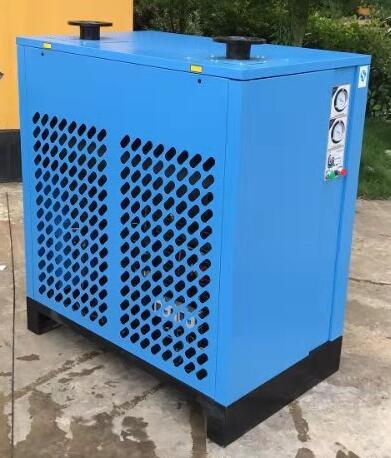

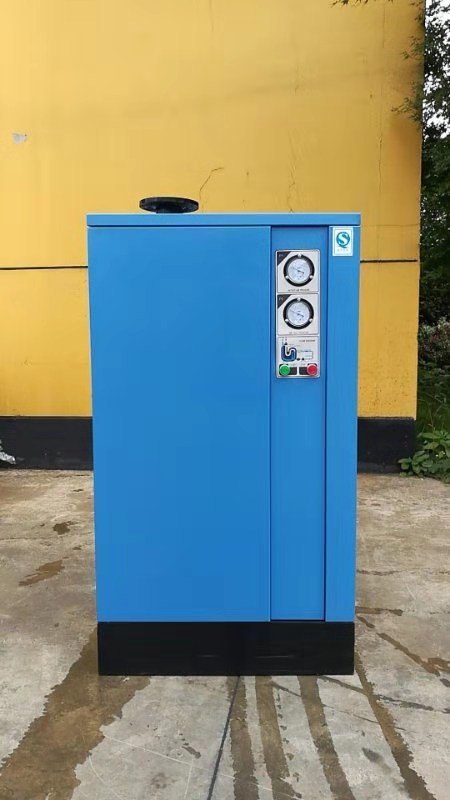

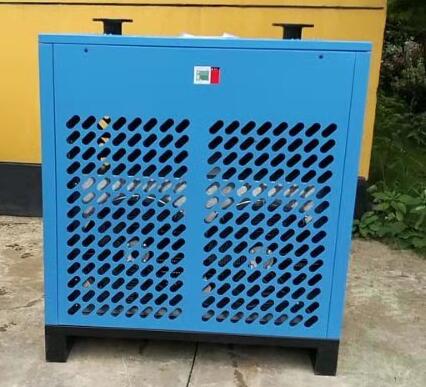

Air drier machine with Air compressor to work together,which is very better and helpful to machine's working.

And to enlarge the lift time for machines.

The Handling capacity inluding 2.5Nm3/min,20Nm3/min and others at customer's request

Handling capacity: 2.5Nm 3 /min
Inlet temperature: ≤45℃
Cooling method:Air cooled
Ambient temperature: ≤38℃
Pressure Dew Point: 3~10℃
Refrigerants:R136A
Inlet pressure: 0.6~1.0Mpa
Pressure loss: ≤0.03Mpa
Power V/HZ:2200V,1PH,50HZ
Interface dimensions: 1”

Handling capacity: 25.7Nm 3 /min
Inlet temperature: ≤80℃
Cooling method:Air cooled
Ambient temperature: ≤38℃
Pressure Dew Point: 3~10℃
Refrigerants:R-22
Inlet pressure: 0.6~1.0Mpa
Pressure loss: ≤0.03Mpa
Power V/HZ:380V,3PH,50HZ
Interface dimensions:DN80
